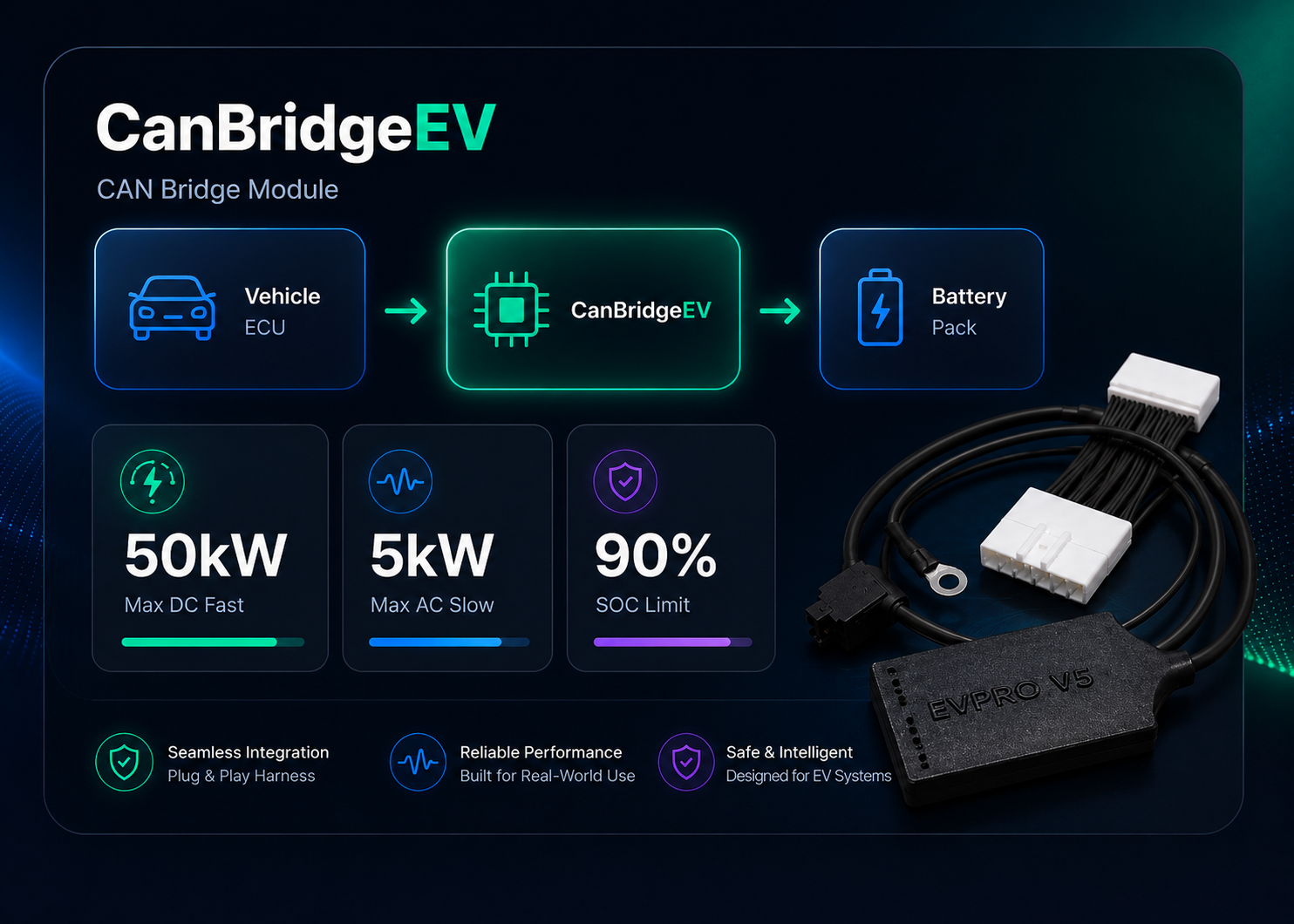

CanBridgeEV translates CAN messages between your Nissan LEAF and a new OEM battery pack — enabling seamless capacity upgrades with advanced charging controls built in.
Six core features designed to protect your battery, extend its lifespan, and give you full control over how it charges.
Automatically bridges CAN messages between supported battery types and vehicle models, enabling seamless upgrades without compatibility issues.
Choose from five power levels, 10 kW to 50 kW. The system caps the rate automatically to reduce thermal stress during fast charging.
Select a slow charge level from 1 kW to 5 kW — useful for limited outlets, solar systems, or low-current supplies.
Cap charging at 50%, 60%, 70%, 80%, or 90% to avoid unnecessary full-charge cycles and reduce long-term degradation.
Uses live BMS data — SOC, SOH, and battery temperature — to dynamically regulate DC fast charge current and protect the pack.
Plug-and-play inline harness configurations for AZE0 and ZE1 models. ZE0 requires a labelled cut-in CAN harness.
All four charging control features are set using the car's HVAC controls — no laptop, no app, no extra hardware.
Plug the inline harness into the vehicle's CAN connector, connect the fused 12V tap and ground wire. No wire cutting required on AZE0 and ZE1 models.
Reconnect the 12V battery and power the car on. A normally operating instrument cluster confirms the bridge is communicating correctly.

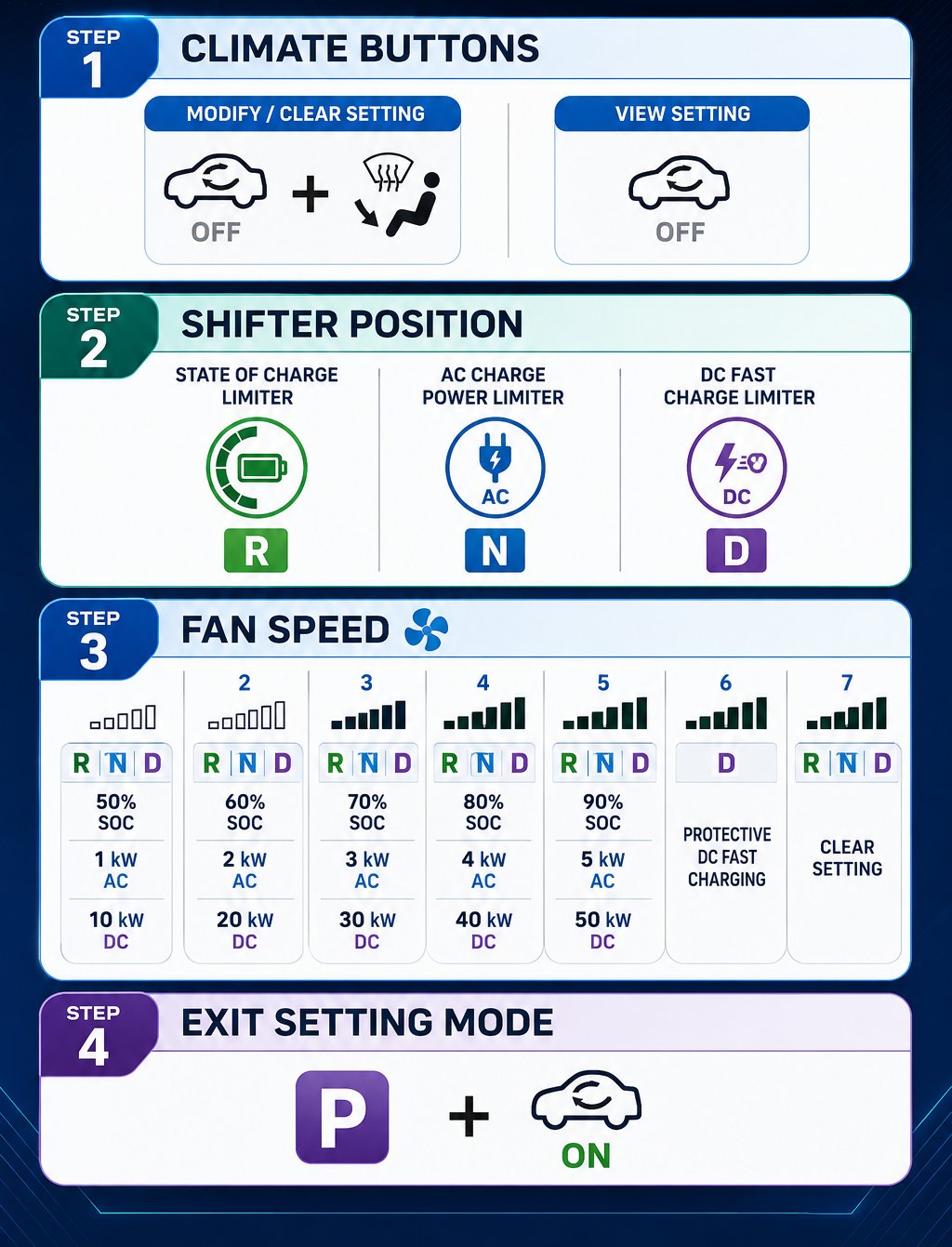

Use the gear selector and fan speed to set DC fast charge limits, SOC limits, and AC charge limits — no tools, no app, no laptop required.
Live BMS data — SOC, SOH, and pack temperature — automatically regulates fast charge current to keep your battery in its optimal thermal range every session.
Confirm your vehicle generation and target battery before ordering. All supported paths use OEM Nissan battery packs only.
| Original Battery | Upgrade Options |
|---|---|
| ZE0 2010–2012 (24 kWh) | ✓ 24 kWh✓ 30 kWh✓ 40 kWh✓ 62 kWh |
| AZE0 2013–2017 (24 kWh) | ✓ 24 kWh✓ 30 kWh✓ 40 kWh✓ 62 kWh |
| AZE0 2016–2017 (30 kWh) | ✕ 24 kWh✓ 30 kWh✓ 40 kWh✓ 62 kWh |
| ZE1 2018+ (40 kWh) | ✕ 24 kWh✕ 30 kWh✓ 40 kWh✕ 62 kWh |
| ZE1 2018+ (62 kWh) | ✕ 24 kWh✕ 30 kWh✕ 40 kWh✓ 62 kWh |
Select your vehicle, battery upgrade, and product. No payment is collected on this page — we review your details and send a PayPal invoice after confirmation.

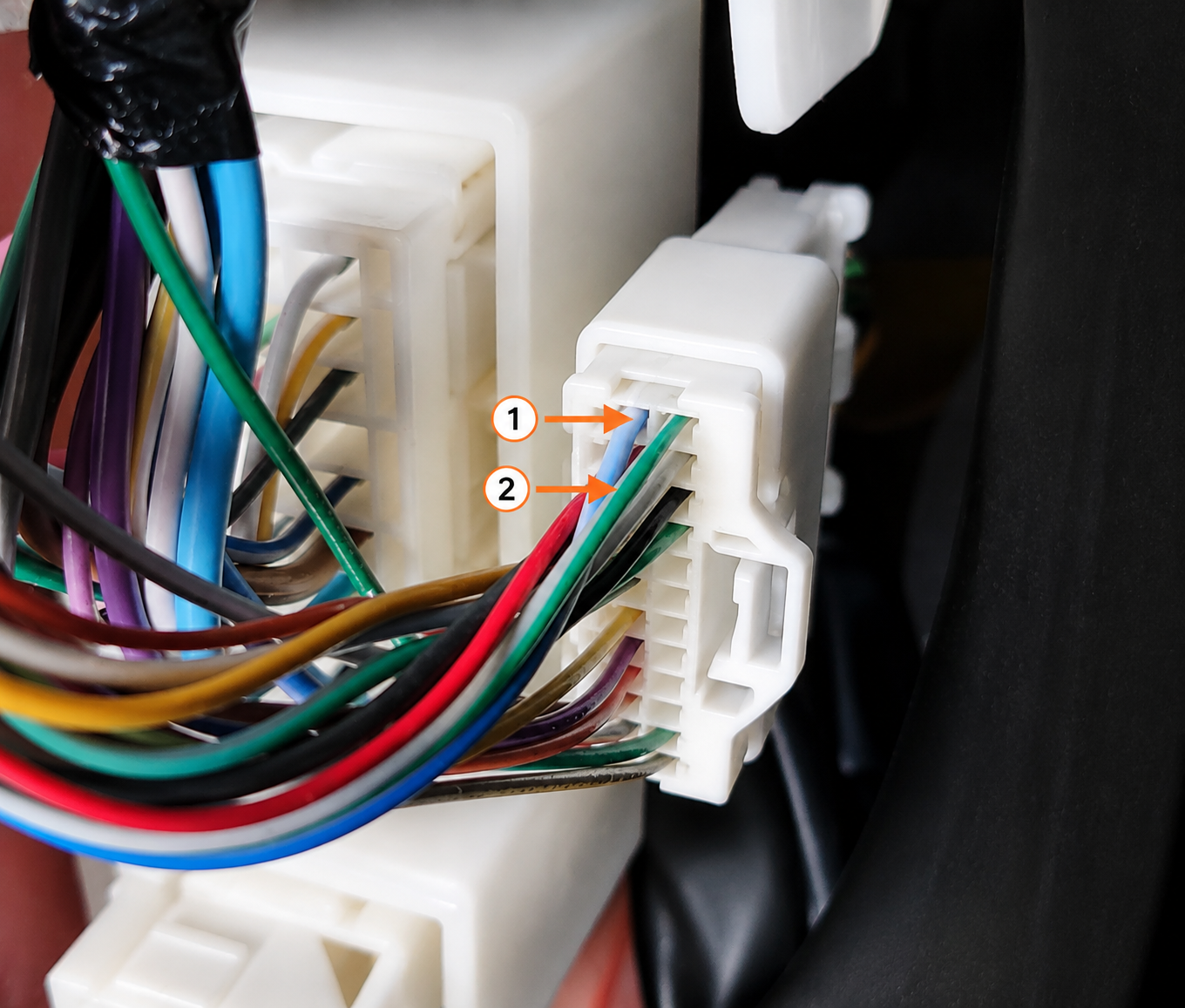

This step appears only for ZE1 2018+ vehicles because connector wiring can vary. Check the back of the connector and match the green and blue wire position before choosing the ZE1 harness product.
